Solution for SQL Server Connection Issues Over the Network

Problem Statement

When attempting to connect from a client (e.g., Windows 11) to a SQL Server instance RUBINHOOD, connection errors may occur. Error messages such as "SQL Server does not exist or access denied" or "SQL Server Error: 17" indicate that the server is unreachable.

The problem is often due to one of the following reasons:

  • TCP/IP protocol is not enabled
  • SQL Server is listening on a dynamic port instead of 1433
  • Firewall is blocking the SQL Server port
  • SQL Server Browser service is disabled

This article provides a step-by-step guide to resolving these issues based on a troubleshooting process with screenshots.

Step 1: Verify that TCP/IP is Enabled

  1. Open SQL Server Configuration Manager (Win + R, then enter SQLServerManagerXX.msc, where XX is the SQL version).
  2. Navigate to "SQL Server Network Configuration" > "Protocols for RUBINHOOD".
  3. Ensure that TCP/IP is enabled.
  4. If TCP/IP is disabled, right-click > Enable.
  5. Restart the SQL Server service.

Result: SQL Server RUBINHOOD now accepts connections over TCP/IP.

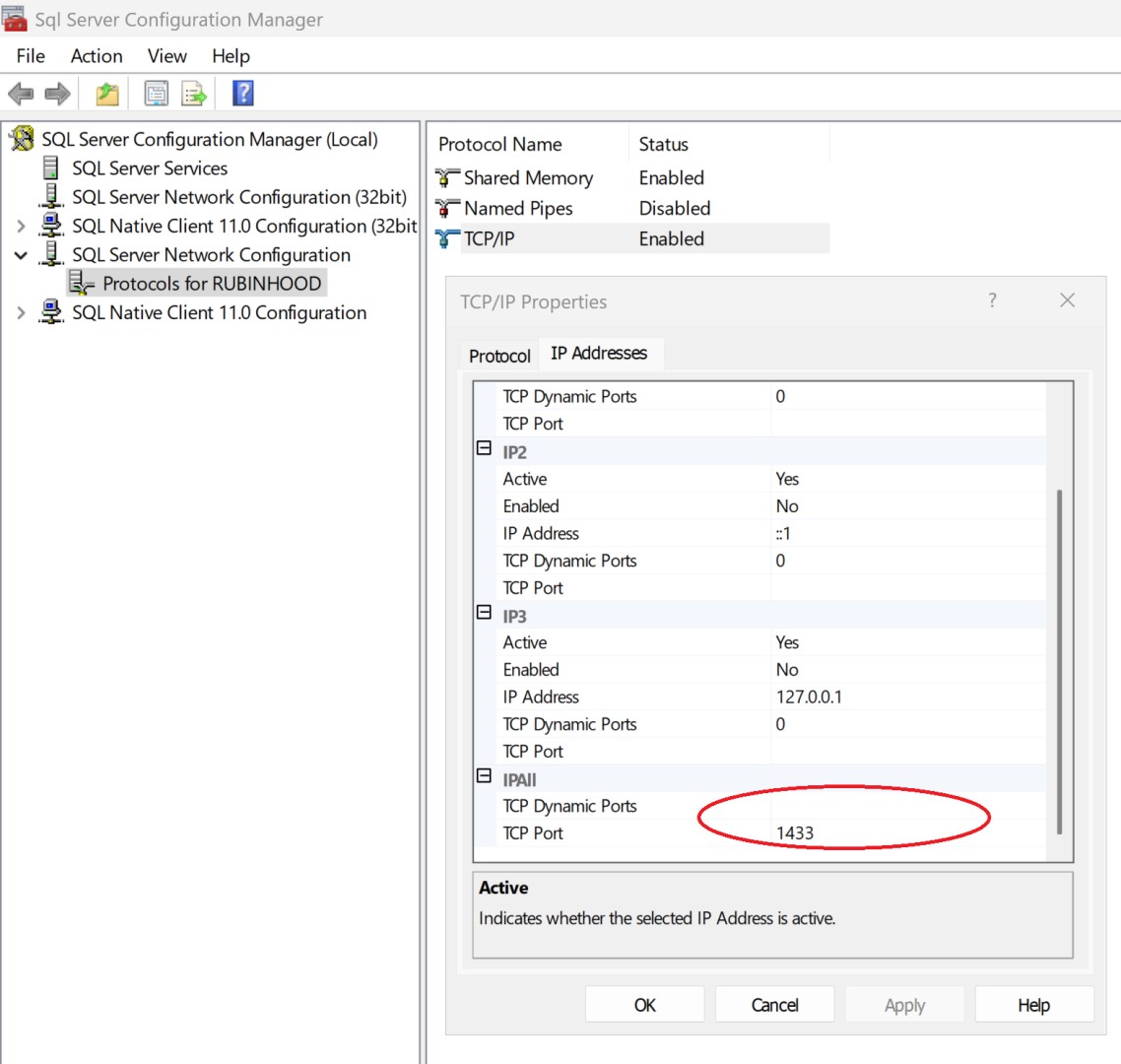

Step 2: Set a Static Port 1433

  1. Double-click on "TCP/IP" > Go to the "IP Addresses" tab.
  2. Scroll down to "IPAll".
  3. Clear "TCP Dynamic Ports" (must be empty).
  4. Set "TCP Port" to 1433.
  5. Restart the SQL Server service.

Result: SQL Server RUBINHOOD now uses the standard port 1433, which is required for remote connections.

Step 3: Configure Firewall for SQL Server RUBINHOOD

  1. Open Windows PowerShell as Administrator (Win + X > "PowerShell (Admin)").
  2. Run the following command to allow the port through the firewall:
    New-NetFirewallRule -DisplayName "Allow SQL Server 1433" -Direction Inbound -Protocol TCP -LocalPort 1433 -Action Allow

Result: SQL Server RUBINHOOD is now accessible over the network.

Step 4: Test the Connection from a Client

  1. Open PowerShell on another machine (e.g., Windows 11 client).
  2. Run the following command to test network connectivity:
    Test-NetConnection -ComputerName 192.168.178.3 -Port 1433
  3. If TcpTestSucceeded = True, the port is reachable.
  4. If False, check the firewall and network settings again.

Result: SQL Server RUBINHOOD is now accessible from the network.

Step 5: Test Connection with SQL Server Management Studio (SSMS) or ODBC

  1. Open SSMS or ODBC Data Source Administrator on the client.
  2. Enter the server name:
    • If default instance: 192.168.178.3
    • If named instance RUBINHOOD: 192.168.178.3\RUBINHOOD
    • If specifying the port explicitly: 192.168.178.3,1433
  3. Test the connection.

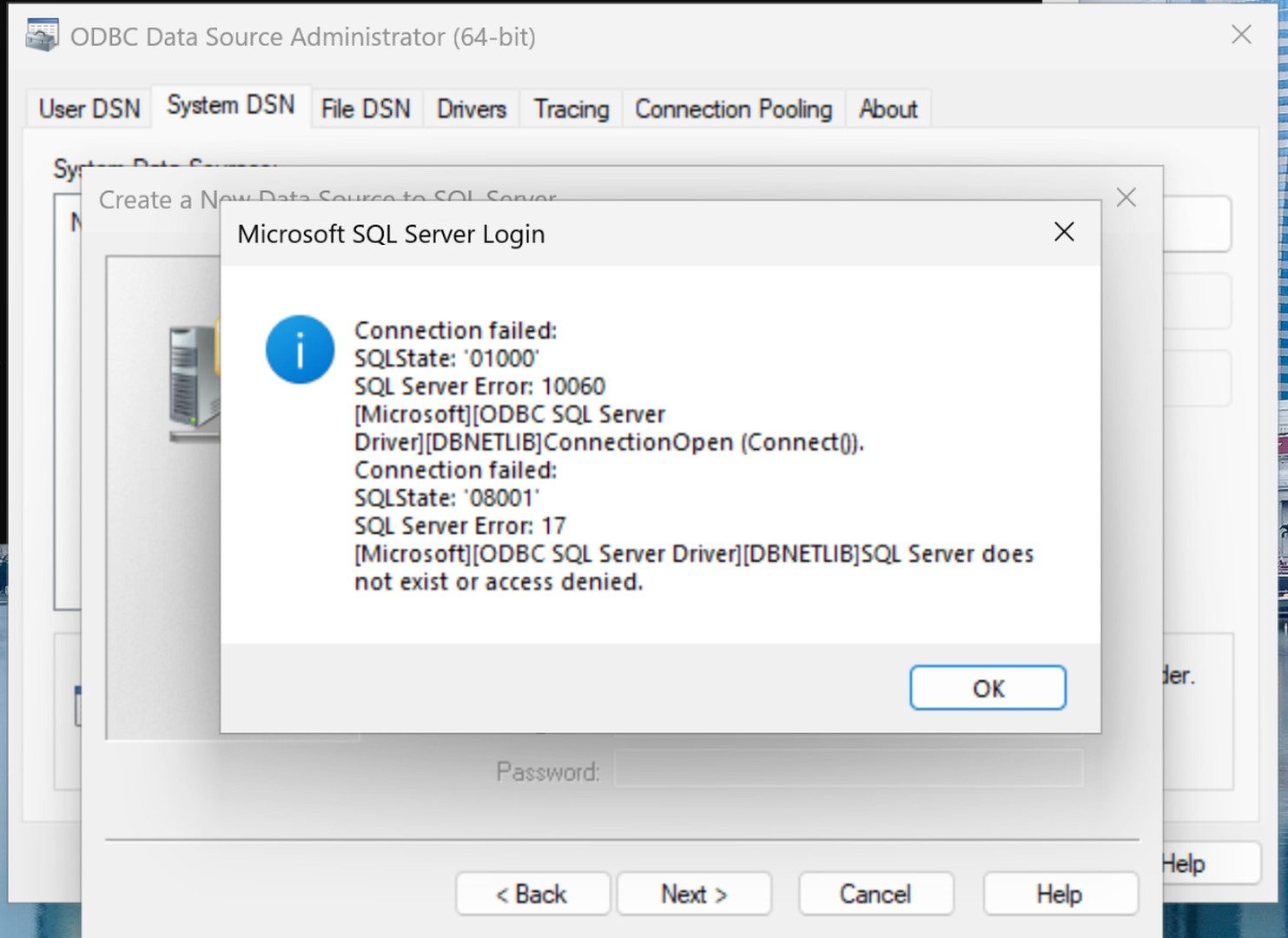

Example ODBC Error Message

If the connection fails, you may see an error like this:

This error typically indicates that:

  • The server is unreachable due to a firewall or network issue.
  • TCP/IP is not enabled.
  • SQL Server is not listening on the correct port.

To resolve this, ensure that TCP/IP is enabled, the firewall allows connections, and the correct port (1433) is set in SQL Server Configuration Manager.

Result: Successful connection to SQL Server RUBINHOOD over the network!

Conclusion

By correctly configuring TCP/IP, setting a fixed port (1433), and adjusting firewall rules, the connection issue was resolved. If errors persist, check:

  • Whether the SQL Server service is running (Get-Service -Name "MSSQL$RUBINHOOD")
  • If SQL Server authentication is properly configured
  • If domain policies allow access to SQL Server RUBINHOOD

Hopefully, this guide helps you resolve SQL Server RUBINHOOD network issues!
